Note: Different voltages and models have different capacitances, please be sure to specify the specific model when ordering. The speed is calculated by dividing the asynchronous speed of the motor (50Hz: 1400r/min, 60Hz: 1680r/min) by the reduction ratio. The actual speed will vary with the size of the load. When a reduction ratio larger than the above table is required for step-by-step deceleration, an intermediate reducer with a reduction ratio of 1:10 can be installed between the motor and the reducer. Motors above 300K are not suitable for heavy-duty applications.

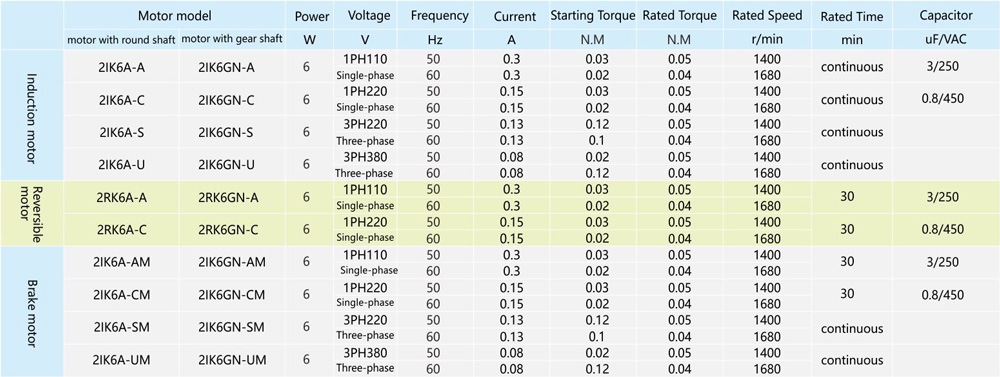

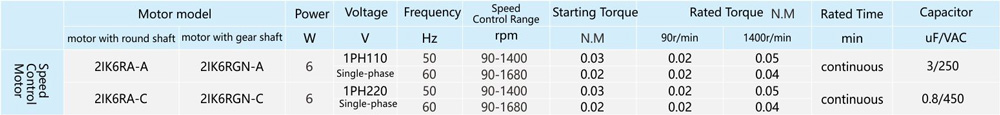

Motor Technical Parameters:

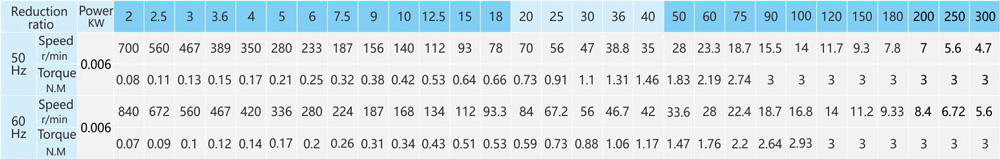

Reduction Motor Max Allowable Torque(the Rated Torque):
